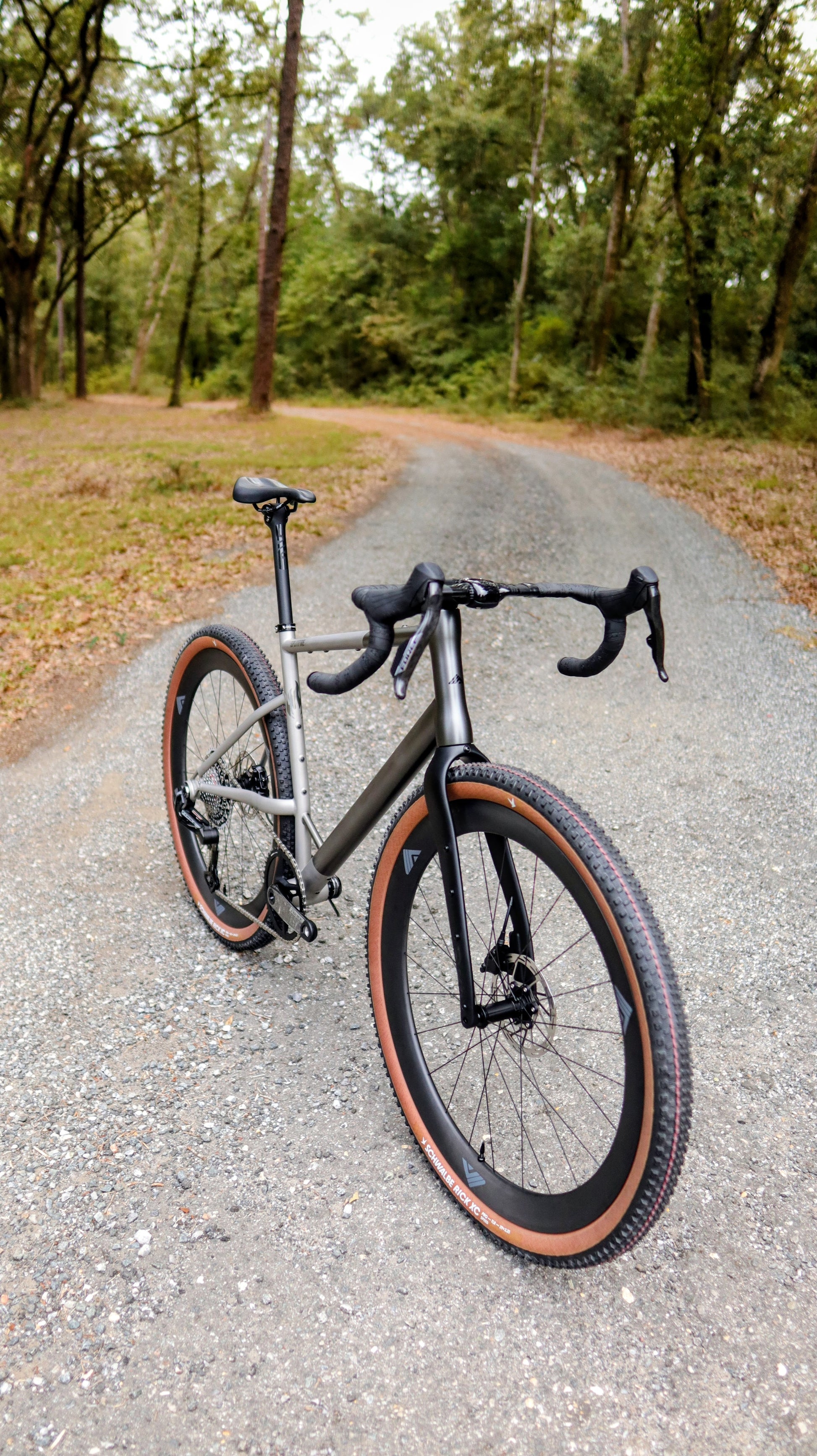

gravel bikes with large tire clearance Splitfire Gravel Bike - Ti 57mm/29x2.25 Tire ClearancePre Sales Open Now with ETA of July 2026. Blackwater Bicycles Titanium Gravel Splitfire: Everything Bigger The Splitfire is a titanium gravel bike built for riders who want more room, more speed, and more versatility from one frame. With clearance for up to 700 x 57mm tires, short 419mm chainstays, UDH compatibility, and clearance for oversized chainrings, Splitfire blends backcountry capability with fast gravel efficiency. 57mm Maximum listed 700c
Splitfire:
Everything Bigger
The Splitfire is a titanium gravel bike built for riders who want more room, more speed, and more versatility from one frame. With clearance for up to 700 x 57mm tires, short 419mm chainstays, UDH compatibility, and clearance for oversized chainrings, Splitfire blends backcountry capability with fast-gravel efficiency.
700 x 57mm or 29 x 2.25 capability.
Splitfire was created for riders who want the freedom to run big, confidence-inspiring tires without giving up the speed and fit of a performance gravel bike. Larger tires add comfort, traction, and stability on rough roads, loose gravel, and long backcountry routes.
Short stays. Big tires. Big chainrings.
The elevated driveside chainstay gives the Splitfire its defining advantage: room for large tires and large chainrings while keeping the rear end compact. That combination makes it equally at home on fast gravel rides, rough mixed-surface routes, and road-wheel swaps.
Elevated Chainstay
The driveside E-stay opens space at the tire and chainring junction, allowing a rare mix of tire volume, gearing clearance, and short chainstay handling.
UDH Compatible
A modern universal derailleur hanger platform simplifies replacement, improves drivetrain compatibility, and keeps the frame ready for current and future drivetrain standards.
T47 Threaded BB
The T47 threaded bottom bracket combines the serviceability of a threaded system with a larger shell diameter for stiffness, alignment, bearing support, and easy maintenance.
Progressive gravel fit with tunable handling.
Splitfire geometry is designed around stability at speed, responsive acceleration, and multiple tire configurations. The result is a titanium gravel platform that can be built for fast mixed-surface riding, rough gravel, or long-distance adventure use.
Fit & Geometry
| Measurement | S 52cm |
M 54cm |
M/L 56cm |
L 58cm |
XL 60cm |
|---|---|---|---|---|---|
| Reach | 380 | 390 | 400 | 405 | 415 |
| Stack | 560 | 575 | 595 | 615 | 630 |
| Effective Top Tube | 520 | 535 | 555 | 560 | 575 |
| Seat Tube Length | 459 | 480 | 500 | 525 | 540 |
| Head Tube Length | 115 | 130 | 150 | 170 | 185 |
Handling & Chassis
| Measurement | S 52cm |
M 54cm |
M/L 56cm |
L 58cm |
XL 60cm |
|---|---|---|---|---|---|
| Head Tube Angle | 70° | 71° | 71° | 71° | 71.5° |
| Wheelbase | 1022 | 1026 | 1044 | 1065 | 1079 |
| Chainstay Length | 419 | 419 | 419 | 419 | 419 |
| BB Drop | 80 | 80 | 80 | 80 | 80 |
| Fork Offset | 45 / 50 | 45 / 50 | 45 / 50 | 45 / 50 | 45 / 50 |
Trail Measurements
| Tire Size | S 52cm |
M 54cm |
M/L 56cm |
L 58cm |
XL 60cm |
|---|---|---|---|---|---|
| 32mm Tire | 78 / 73 | 72 / 67 | 72 / 67 | 72 / 67 | 69 / 63 |
| 45mm Tire | 83 / 78 | 76 / 71 | 76 / 71 | 76 / 71 | 73 / 68 |
| 55mm Tire | 87 / 81 | 80 / 75 | 80 / 75 | 80 / 75 | 76 / 71 |
| Maximum Tire Clearance | 700 x 57c | 700 x 57c | 700 x 57c | 700 x 57c | 700 x 57c |
| Maximum Chainring | 44t / 54t | 44t / 54t | 44t / 54t | 44t / 54t | 44t / 54t |
| Axle Standard | 12x100 / 12x142 | 12x100 / 12x142 | 12x100 / 12x142 | 12x100 / 12x142 | 12x100 / 12x142 |
Built around modern standards.
Splitfire combines titanium durability, modern drivetrain compatibility, internal routing options, flat-mount disc brakes, and large tire clearance into one highly versatile gravel platform.
Specifications
Build your Splitfire.
Choose the frame, fork, finish, wheelset, drivetrain, and cockpit setup that fits the way you ride. For full builds or custom options, contact Blackwater Bicycles for a quote.
